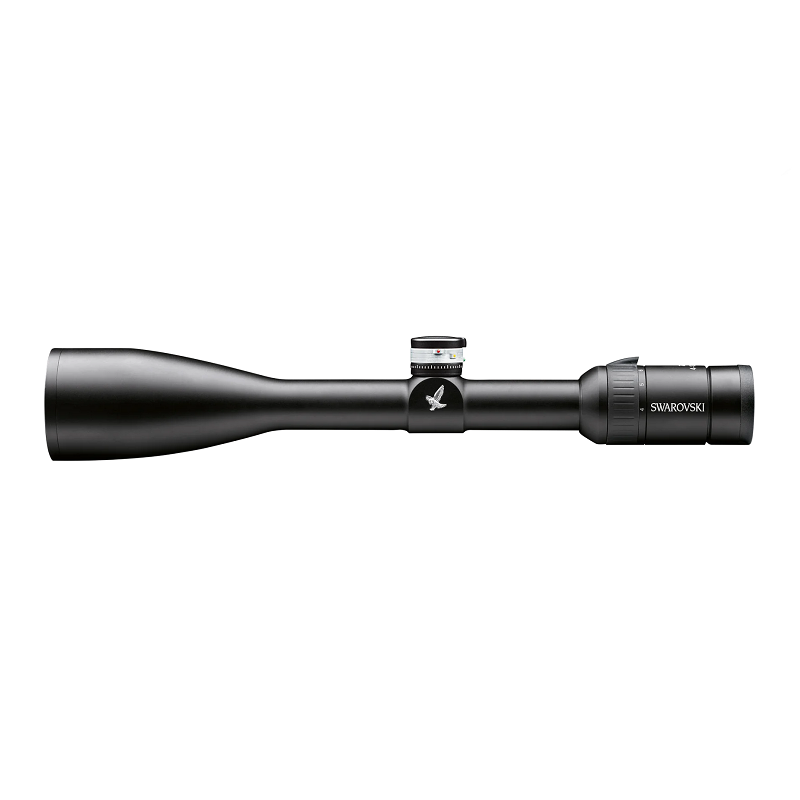

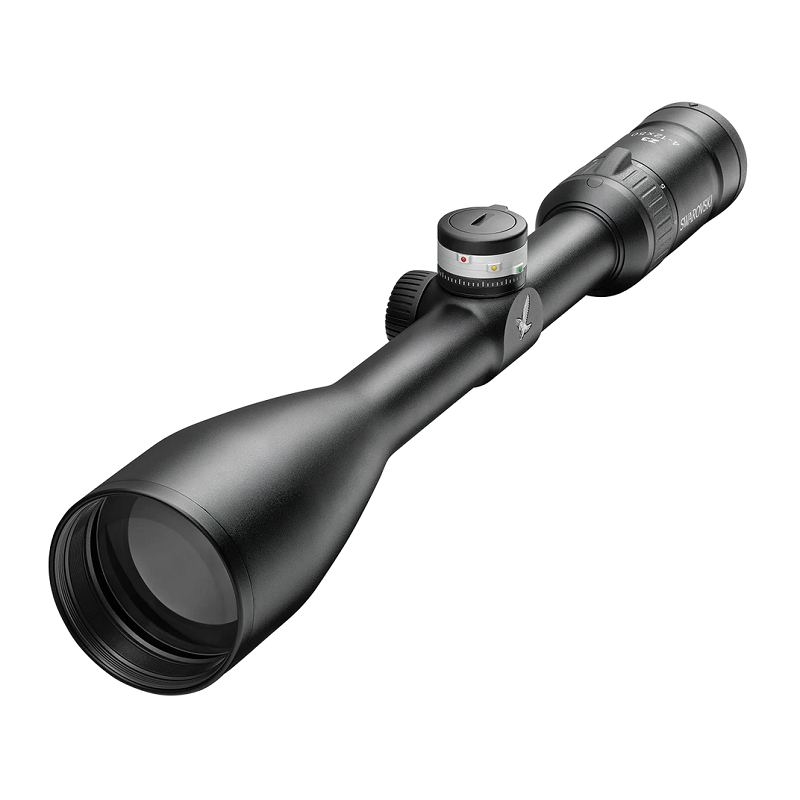

Objective lens of 50 mm diameter, 12x magnification and optional ballistic turret are the special features of the Z3 4-12x50, which is great for poor light conditions. *Product Varies Slightly From Images
Objective lens of 50 mm diameter, 12x magnification and optional ballistic turret are the special features of the Z3 4-12x50, which is great for poor light conditions and longer distances.

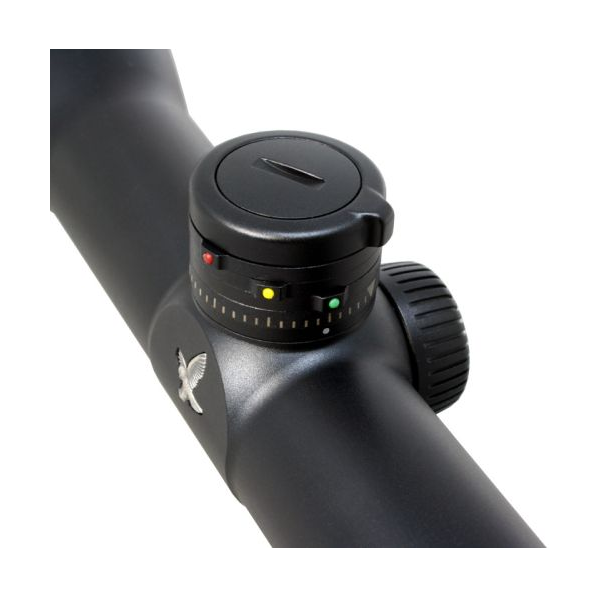

The concept of the BT/4W system is to easily allow the shooter or hunter to dial in the correct elevation needed for a shot with the Ballistic Turret (BT) system, and then if necessary, be able to compensate for wind by utilizing the vertical hash marks along the crosshair.
Even in the 1-inch class you don’t need to go without backup lighting and higher magnification. The Z3 4-12x50 BT L is designed to cope with these values – even with an incredibly lightweight design. The ballistic turret can be separately adjusted to your personal requirements, allowing you to stay on target at different distances.
Specifications
Magnification: 4-12x
Effective objective lens diameter: 50 mm
Exit pupil diameter: 12.5-4.2 mm
Exit pupil distance: 90 mm
Field of view: 29.1-9.9 ft/100 yds
Field of view degrees: 5.5-1.9°
Field of view apparent: 22.7°
Diopter adjustment: -2.5 to +2.5 dpt
Light transmission: 90%
Impact point correction per click (in / mm): 0.25 / 7
Max. elevation / windage adjustment range (m/100m / in/100yds): 43 / 1.2
Length: 13.78 in
Weight: 14.5 oz
Central tube diameter: 1 in
*Product Varies Slightly From Images
