The Conquest V4 line of high-performance riflescopes combines the tried-and-true ZEISS optics concept with a rugged and functional design.
The Conquest V4 line of high-performance riflescopes combines the tried-and-true ZEISS optics concept with a rugged and functional design. Their compact design and perfect balance between a wide field of view and large magnification range is ideal for all types of hunting. The V4 models are equipped with a 4x zoom and functional, high-precision, and fully reliable mechanical components.
Special models have a ballistic turret with a wide reticle adjustment range (elevation and windage). As a result, the hunter has the flexibility needed for a variety of different hunting methods.

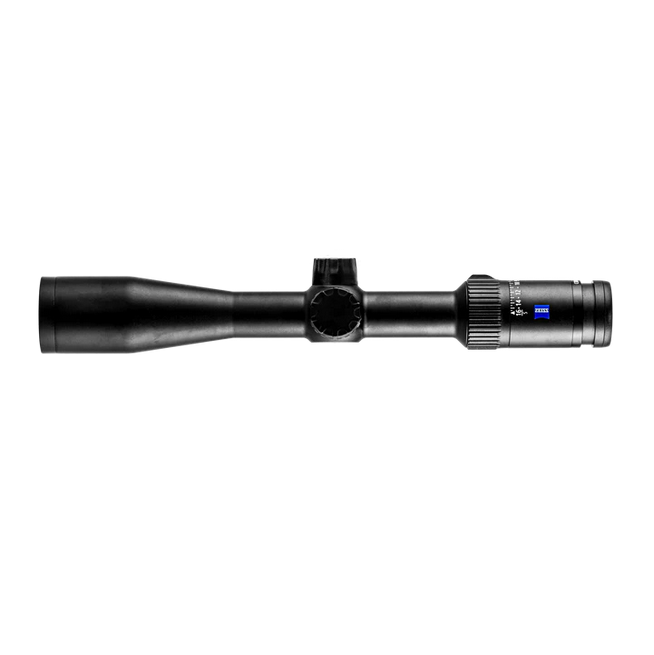

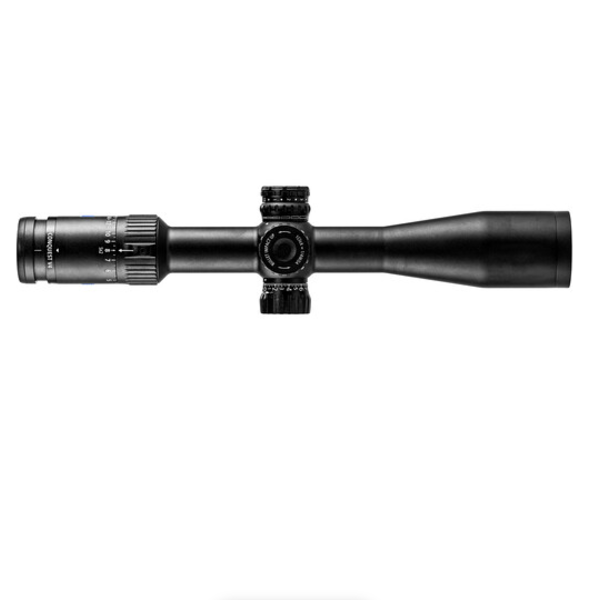

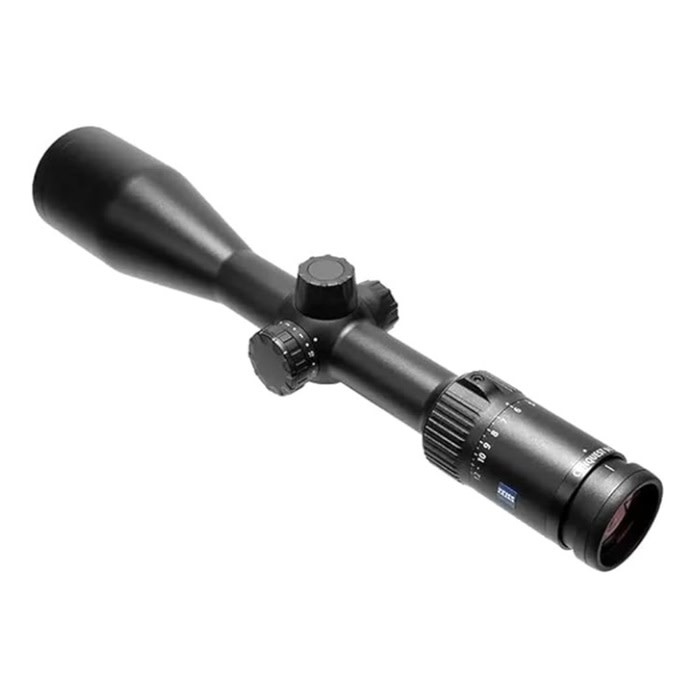

Thanks to its compact and lightweight design, the Conquest V4 4-16x44 is ideal for active hunting and hunting in the mountains. Its zoom range makes this V4 the perfect choice for medium and long-distance shots.
Performance/Specifications
Magnification: 4 – 16 x 44
Effective lens diameter: 33.2 – 44 mm
Light transmission: 90%
Exit pupil diameter: 8.5 – 2.8 mm
Twilight factor: 11.5 – 26.5
Field of view at 100 m (yds): 9.5 – 2.4 m (28 – 7 ft)
Objective viewing angle: 5.4° – 1.4°
Diopter adjustment range: + 2.0 | − 3.0 dpt
Eye relief: 90 mm (3.54 ")
Parallax setting: 9.1 m – ∞ (10 yds – ∞)
Adjustment range at 100 m: 230 × 175 cm
Adjustment per click at 100 m: 1/4 MoA (0.7 cm /100 m)
Centre tube diameter: 30 mm
Eyepiece tube diameter: 44 mm
Objective tube diameter: 50 mm
Features
LotuTec | Nitrogen filled: + | +
Water resistance: 400 mbar
Physical
Operating temperature: − 25°C | + 50°C (− 13°F | + 122°F)
Length: 356 mm (14.0 ")
Weight (without inner rail): 640 g (22.6 oz)
