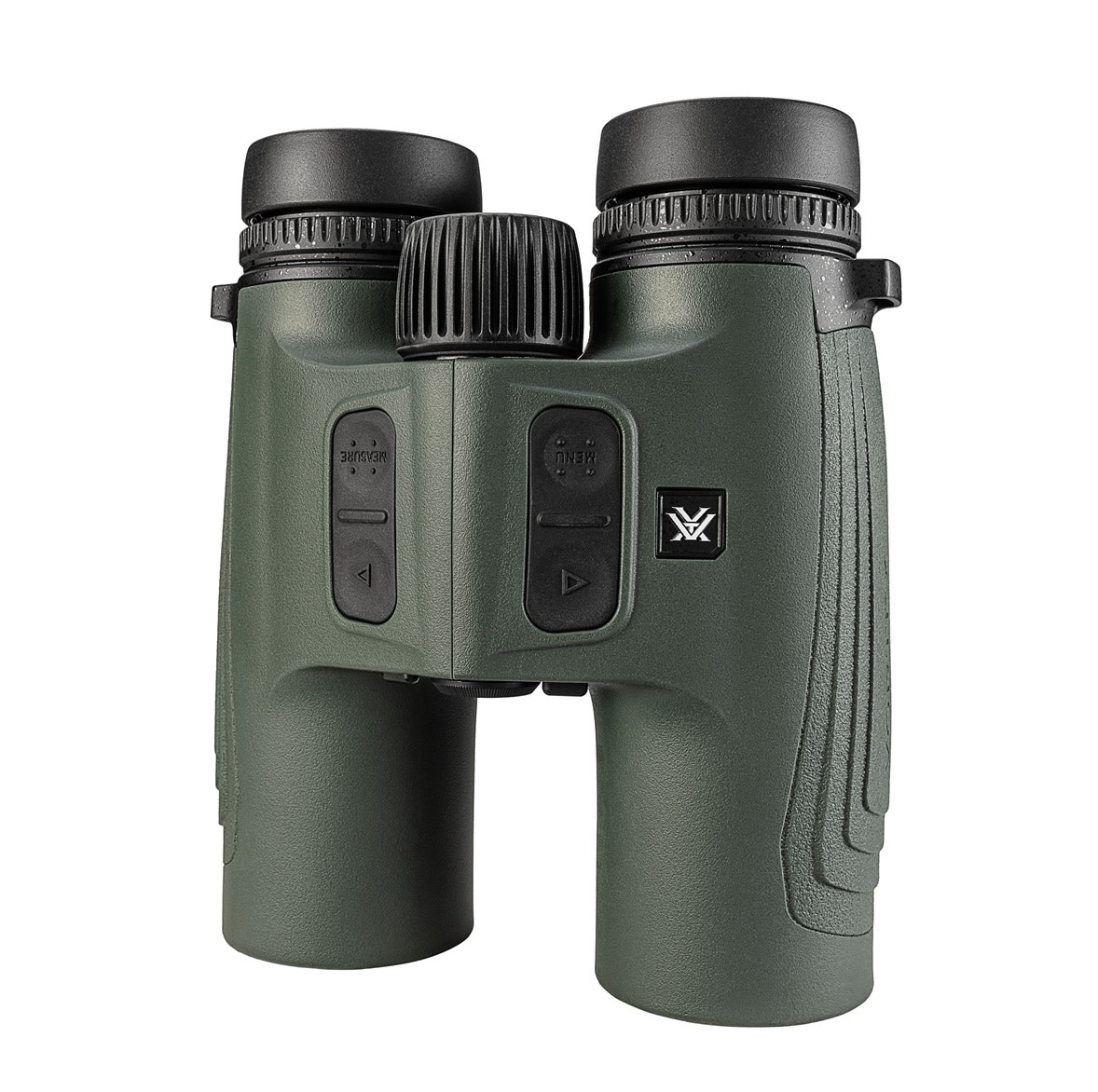

Built for hunters and competitors, where split-second decisions make or break success. Talon HD 10K puts the Vortex's top-tier glass, extreme-range performance, and real-time ballistic data in one tool you can count on.
Run it solo or pair with Vortex Relay devices for seamless data flow across your setup. From spotting your target to taking the shot, Talon HD keeps you fast and focused - no matter the distance.
Magnification 12x
Objective Lens Diameter 50 mm
Eye Relief 18.5mm
Angular Field of View 5.2°
Linear Field of View 272' @ 100 yds.
Range Reflective (yards) Up to 10,000 yds.
Range Tree (yards) Up to 4200 yds.
Range Deer (yards) Up to 2600 yds.
Min Range 10 yds.
Height 7.2"
Width 5.6"
Weight 46.8 oz.
Ranging Modes
Line of Sight (LOS): Displays the actual line of sight range.
Horizontal Component Distance (HCD): Displays the slope angle compensated distance to the target.
Ballistics (BAL): Displays the actual line of sight range and wind/drop solution.
SCAN Feature: Displays continuous distance readings while panning across a landscape.
Target Modes
Normal Mode: The standard mode providing the target's range with the strongest range result. Recommended for most situations.
First Mode: Displays the closest distance when ranging. Ideal for ranging a smaller target in front of other larger or more reflective objects.
Last Mode: Displays the farthest distance when ranging. Ideal for ranging a specific target behind a group of objects like brush, trees, rocks, etc.
Extended Laser Range (ELR) Mode: Ideal for ranging targets at extreme distances. A slightly longer response time allows greatly for extended range distances.
Rain/Fog Mode: Ideal for ranging in adverse conditions, such as rain, snow, fog, or dust. Helps the rangefinder return accurate readings despite poor visibility.
10,000-Yard Capability
For ranging shots, planning stages and stalks.
HD Optical System
Premium glass and optical technology for long-range clarity.
In-Display Wind/Drop Solutions
Provided by integrated GeoBallistics Solver.
Active Matrix Red OLED Display
Intuitive, customizable, auto-leveling.
Customizable Ballistic Profiles
Use presets or load your own for any shooting setup.
On-Board Environmental Sensors
Real-time temperature, pressure, humidity, compass bearing, and inclination.
Wind Bearing Capture Mode
Lock in wind speed and direction for accurate shots.
Vortex Relay Connectivity
Connects to share real-time ballistic, environmental, and rifle-specific data across a suite of devices.
Integrated GeoBallistics Solver
Equipped with the accurate GeoBallistics Solver backed by a full, up-to-date bullet library.
Built-in Range Card Generator
Ability to create and save up to ten range cards with drop and wind corrections.
XR Plus Lens Coatings
Ultimate anti-reflective coatings on all air-to-glass surfaces provide maximum light transmission for peak clarity and the pinnacle of low-light performance.
Adjustable Eyecups
Twist up and down for comfortable viewing with or without eyeglasses.
Center Focus Wheel
Adjusts the focus of both binocular barrels at the same time.
Locking Diopters
Adjusts for differences in a user's eyes.
ArmorTek
Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt.
Rubber Armor
Provides a secure, non-slip grip, and a durable external protection.
Nitrogen Gas Purged
Gas purged and O-ring sealed for superior fogproof and waterproof performance in the most extreme conditions.
Waterproof
Designed to withstand harsh weather conditions.
Fogproof
Designed to withstand a wide range of temperatures.
Shockproof
Designed to withstand the highest levels of impact.
Tripod Adaptable
Allowing use on a tripod or car window mount. Tripod adapter may be required.
