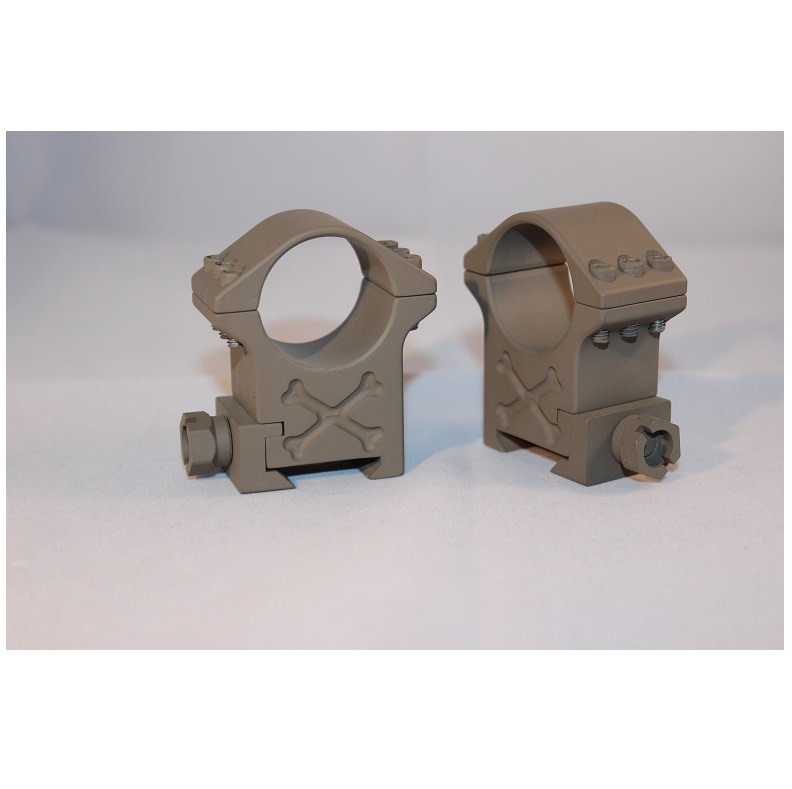

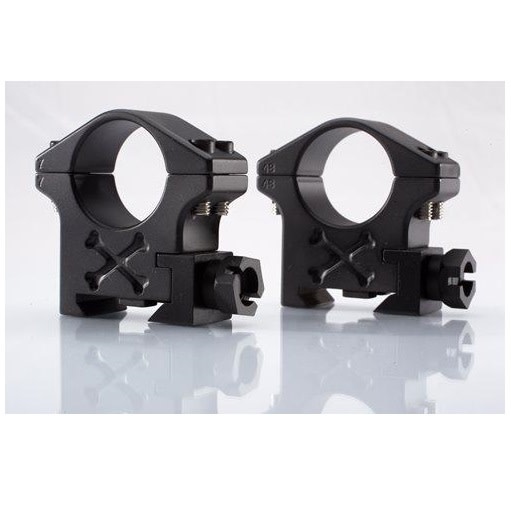

TALLEY Tactical Rings

• • Talley Tactical Rings are machined from solid 7075 T6 alloy and are a match grade ring.
  • All fasteners are stainless steel, and rings have a Cerakote™ finish.
  • Rings will fit any milspec 1913 Picatinny rail.

  Height / Diameter	1”	30MM	34MM	35MM	36MM
  Low	.500″ (1″) /	.4595″ (1.0495″)/	N/A	N/A	N/A
  Medium	.625″(1.150) /	.5345″ (1.125″)/	.4557″ (1.125″)/	N/A	N/A
  High	.750″ (1.25″) /	.6845″ (1.275″)/	.6059″ (1.278″)/	N/A	N/A
  Extra High	NA	.8495″ (1.440″)/	.7707″ (1.440″)/	.500″ (1.440″)/	.541″ (1.249″)/

  ***All measurements from top of the Picatinny rail surface.  First number is to the bottom of the scope tube, (second number) is to Centerline of scope tube.  / Third number is weight of ring set. ***



  Talley’ Tactical Scope Ring Torque Recommendations?

  Cap Screws on Rings:  17-20 in/lb on ring cap screws. Do not exceed scope manufacturer’s allowable torque specs on main tube. Always recommended to verify with scope manufacturer allowable torques to prevent marking or damage to scope tube.  Always verify with the scope manufacturer the maximum allowable torque on main tube.

  • • Picatinny rail locking plate bolt: Torque limitations can depend on picatinny rail manufacture; however the locking plate and screws of Talley’s Tactical Rings can be torqued up to 65inlbs. Always make sure your torque wrench is calibrated, Talley Mfg is not responsible for damage caused to scopes or firearms due to over torquing

PLEASE REFER TO TALLEY'S WEBSITE TO FIND THE CORRECT RINGS FOR YOUR FIREARM:

https://www.talleymanufacturing.com/product-category/lightweight-alloy-scope-mounts/
