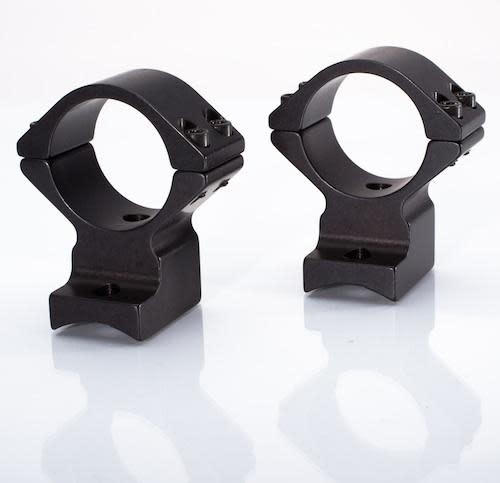

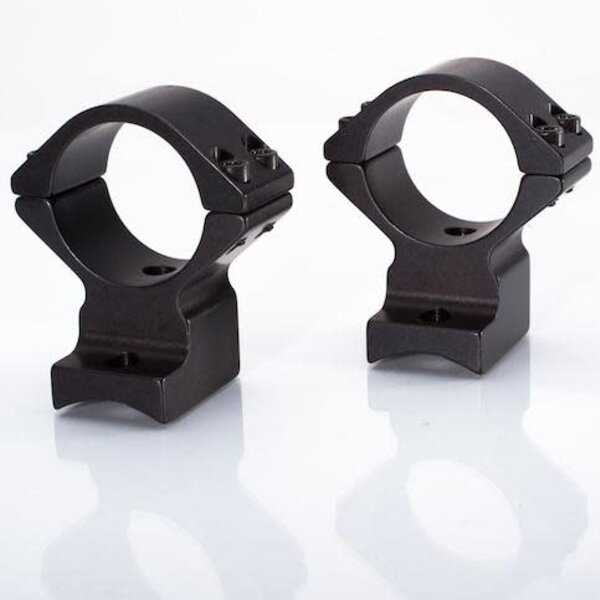

TALLEY Sauer 202 Rings

Talley Manufacturing offer a unique and simplified one-piece scope ring and base solution for Sauer 202 rifles. This simplified mounting system eliminates the possibility of an “out of alignment” interface or “loose connection” between the ring and base of traditional two-piece designs.  Ultimately this provides more strength and durability than rival steel rings and bases, but with a lighter overall weight. Fully CNC machined from lightweight aircraft-grade aluminum to the industries tightest tolerances, this rigid scope mounting platform requires no lapping and is ready to go out of the box.

Heym Scope Mounts – Product Dimensions and Weights

¹ The height is measured from the top of the action/ receiver to the bottom of the scope tube at the respective mounting location

²  Hole spacing measured center to center.

• Front hole spacing: .860 inches (21.84mm)
• Rear hole spacing: .860 inches (21.84mm)
• Sold in pairs.
• Includes mounting screws and wrench. (6-48 Screws / T-15)

What height scope rings do I need for my Sauer 202 Rifle?

Simplified method of determining required scope ring height

• Using some sort of shim (i.e. coins, washers, magnets) stack up the required number of shims to achieve desired scope height.
• Verify final height does not interfere with operation of bolt handle.
• Measure the final stack of shims.

Torque Recommendations?

• Cap Screws on Rings:  17-20 in/lb on ring cap screws. Do not exceed scope manufacturer’s allowable torque specs on main tube. Always recommended to verify with scope manufacturer allowable torques to prevent marking or damage to scope tube.  Always verify with the scope manufacturer the maximum  allowable torque on main tube.

• Sauer 202 Scope Mounts to Action: Torque can depend on the receiver. Please check with the rifle manufacturer to verify allowable torque into receiver. Always make sure your torque wrench is calibrated, Talley Mfg is not responsible for damage caused to scopes or firearms due to over torquing.

Loctite?

• Although not always necessary, using Loctite for the screws going in the receiver is perfectly fine. We do not recommend using anything stronger than Loctite Blue 242. We do not recommend using Loctite on the ring screws. Always test fit before applying any Loctite.
