TALLEY Remington Model 7 Rings

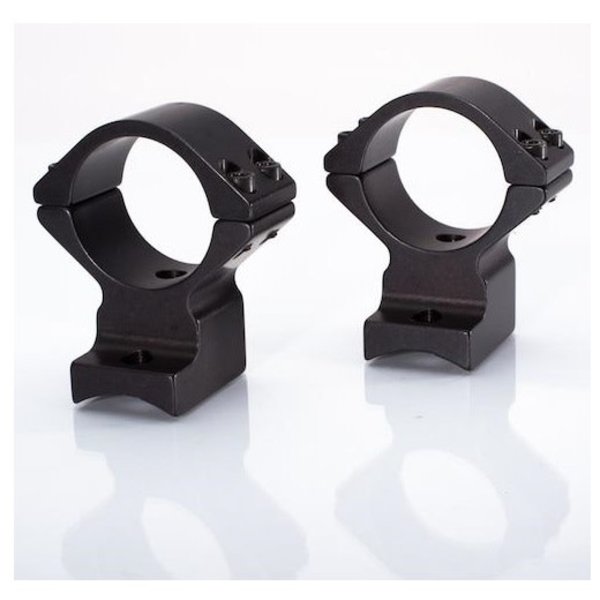

Talley Manufacturing offer a unique and simplified one-piece scope ring and base solution for the Remington Model 7 Rifles with 4 mounting holes. This simplified mounting system eliminates the possibility of an “out of alignment” interface or “loose connection” between the ring and base of traditional two-piece designs. Ultimately this provides more strength and durability than rival steel rings and bases, but with a lighter overall weight. Fully CNC machined from lightweight aircraft-grade aluminum to the industries tightest tolerances, this rigid scope mounting platform requires no lapping and is ready to go out of the box.

Remington Model 7 Scope Mounts – Product Dimensions and Weights

¹ The height is measured from the top of the action/ receiver to the bottom of the scope tube at the respective mounting location

²  Hole spacing measured center to center.

³  Extended rings are typically used with long or magnum length actions when mounting a scope with a shorter main tube length. Front mount is offset by approximately 3/8 of an inch.

• Front hole spacing: .862 inches (21.89mm)
• Rear hole spacing: .275 inches (6.98mm)
• Sold in pairs.
• Includes mounting screws and wrench. (6-48 Screws / T-15)

What height scope rings do I need for my Remington Model 7?

Simplified method of determining required scope ring height

• Using some sort of shim (i.e. coins, washers, magnets) stack up the required number of shims to achieve desired scope height.
• Verify final height does not interfere with operation of bolt handle.
• Measure the final stack of shims.

Torque Recommendations?

• Cap Screws on Rings:  17-20 in/lb on ring cap screws. Do not exceed scope manufacturer’s allowable torque specs on main tube. Always recommended to verify with scope manufacturer allowable torques to prevent marking or damage to scope tube.  Always verify with the scope manufacturer the maximum  allowable torque on main tube.

• Remington Model 7 Scope Mounts to Action: Torque can depend on the receiver. Please check with the rifle manufacturer (Remington Arms Company) to verify allowable torque into receiver. Always make sure your torque wrench is calibrated, Talley Mfg is not responsible for damage caused to scopes or firearms due to over torquing.

PLEASE REFER TO TALLEY'S WEBSITE TO FIND THE CORRECT RINGS FOR YOUR FIREARM:

https://www.talleymanufacturing.com/product-category/lightweight-alloy-scope-mounts/

About the Remington Model Seven?

Conceptualized as the replacement to the Remington Model 600, the Remington Model Seven is a bolt action, free floated barrel hunting rifle weigh in at just 6 ½ lbs. Introduced in 1983, it was first viewed as a compact shorter action model of Remington Model 700 short action with its short barrel length measuring in at 1/2 shorter than the Model 700 Short Action. The Model Seven was later revitalized in 2016 with the addition of Magnum calibers that carry the slightly longer 20″ magnum contour barrel and the later options of the original single trigger or the new X-Mark Pro-Trigger system. Available in a variety of configurations, stock versions, and calibers (to include the popular 6.5 Creedmoor), the Remington Model Seven can be set up for all hunters and sport shooters alike.
