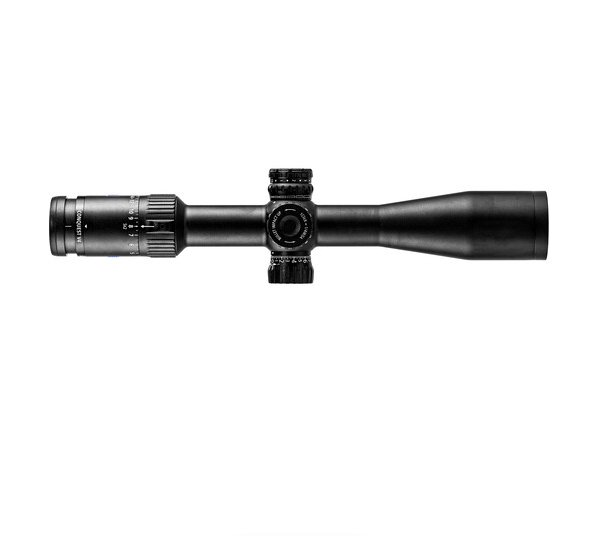

This ZEISS 4-16x44 Conquest V4 Side-Focus Riflescope is engineered for hunting and shooting at longer ranges and in low-light conditions.
This ZEISS 4-16x44 Conquest V4 Side-Focus Riflescope is engineered for hunting and shooting at longer ranges and in low-light conditions. While its 4-16x magnification allows you to zoom in on distant targets, the wide 44mm objective lens will generate bright and high-contrast images in most lighting conditions. The ZMOAi-T30 Reticle in the second focal plane features three tapered posts and an illuminated red crosshair, with 1 MOA hashmarks for holdover and windage. Impact point adjusts at 1/4 MOA per click, with an easy to operate, tactile, and repeatable external elevation turret with ballistic stop and an external, locking windage turret. The optical system is outfitted with precision elements, made from high-definition optical glass and treated with T* multi-coatings, which produce a high light transmission and create bright and sharp images. The exterior lenses are coated with LotuTec hydrophobic film to bead water and resist skin oil and other contaminants. A side-focus dial corrects parallax from 10 yards to infinity. The aluminum housing is crafted with strength, durability, and precision in mind. It has a 30mm main tube and offers waterproof, nitrogen-filled fog proof, and submersible performance.
Features
Impact Point Correction: 1/4 MOA per Click
Windage Adjustment: 60 MOA
Elevation Adjustment: 80 MOA
Parallax Correction: Yes, 50 yd / 45.7 m to Infinity
LotuTec / Nitrogen filled: + / -

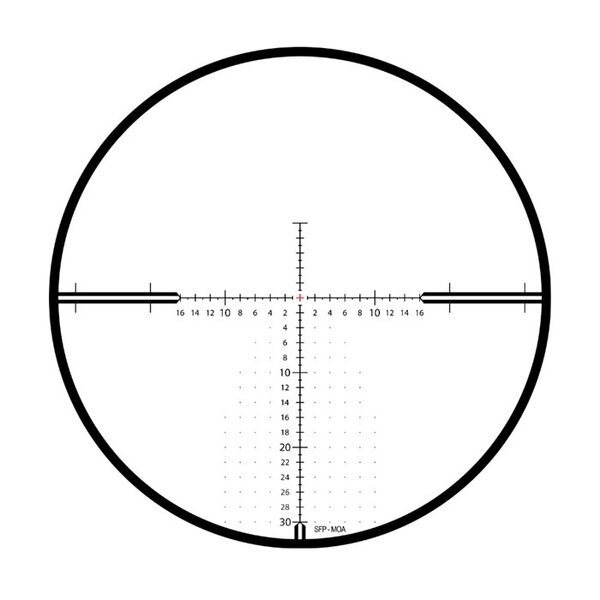

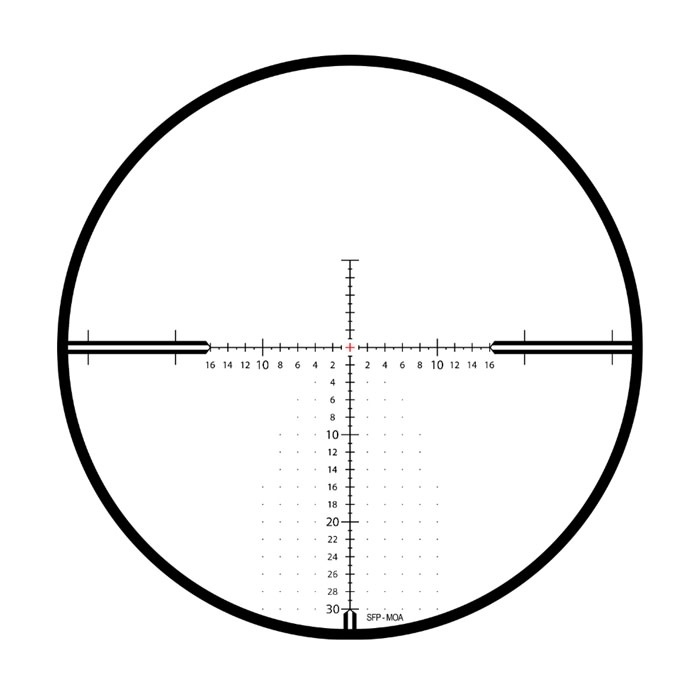

Reticle
Reticle Type: ZMOAi-20 Reticle (Second Focal Plane)
Illumination: Illuminated
Illuminated Color: Red
Brightness Settings: Adjustable Brightness (10 Levels)
Environmental
Water Resistance: Waterproof, 400 mbar
Fog proof: Yes, Nitrogen Filled
Operating temperature: − 25°C / + 50°C (− 13°F / + 122°F)
General
Battery: 1 x CR2032
Material: Aluminum
Dimensions: Length: 14.5" / 36.8 cm
Weight: 24.4 oz / 691.7 g
Performance
Magnification: 4 – 16 x
Effective lens diameter: 33.2 – 44 mm
Light transmission: 90%
Exit pupil diameter: 8.5 – 2.8 mm
Twilight factor: 11.5 – 26.5
Field of view at 100 m (yds): 9.5 – 2.4 m (28 – 7 ft)
Objective viewing angle: 5.4° – 1.4°
Diopter adjustment range: + 2.0 / − 3.0 dpt
Eye relief: 90 mm (3.54 ")
Parallax setting: 9.1 m – ∞ (10 yds – ∞)
Adjustment range at 100 m: 230 × 175 cm
Adjustment per click at 100 m: 1/4 MoA (0.7 cm /100 m)
Main tube diameter: 30 mm
Eyepiece tube diameter: 44 mm
Objective tube diameter: 50 mm
